Description
This Rear 4-Piston Kit was developed specifically to complement the FM Advanced Pro front 4- and 6-piston brake system. It is a perfectly balanced setup for those wishing to have a front/rear matching kit and is the BEST optimal braking for your 2G DSM.
Made of the same high-quality Billet material as the fronts, it also has many options on this system, which allows you to choose the best setup for your requirements. All calipers will be 4-pistons, with the option to change piston sizes (for those who have the data to fine-tune their braking setup to their specific vehicle and driving requirements).
CALIPER FEATURES

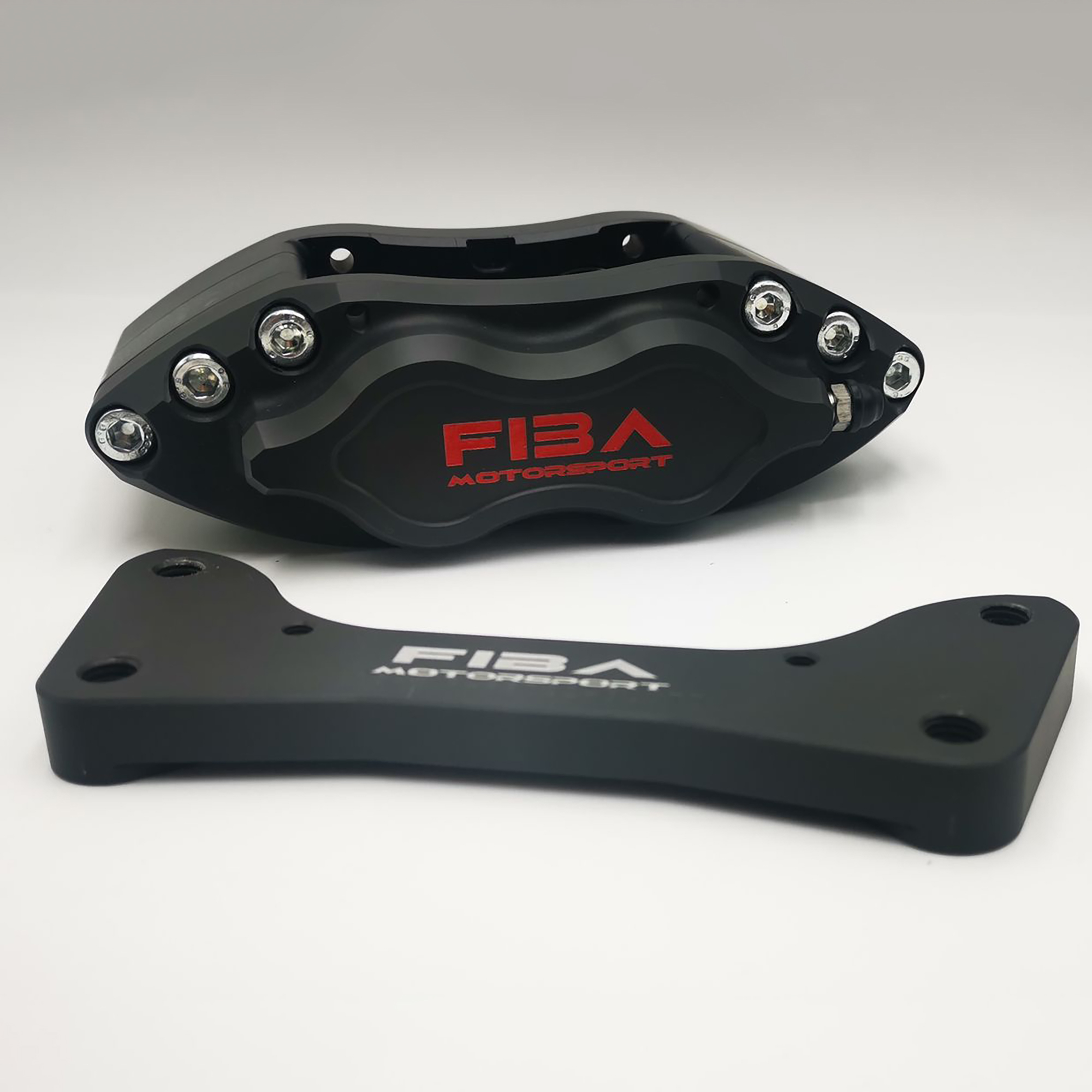

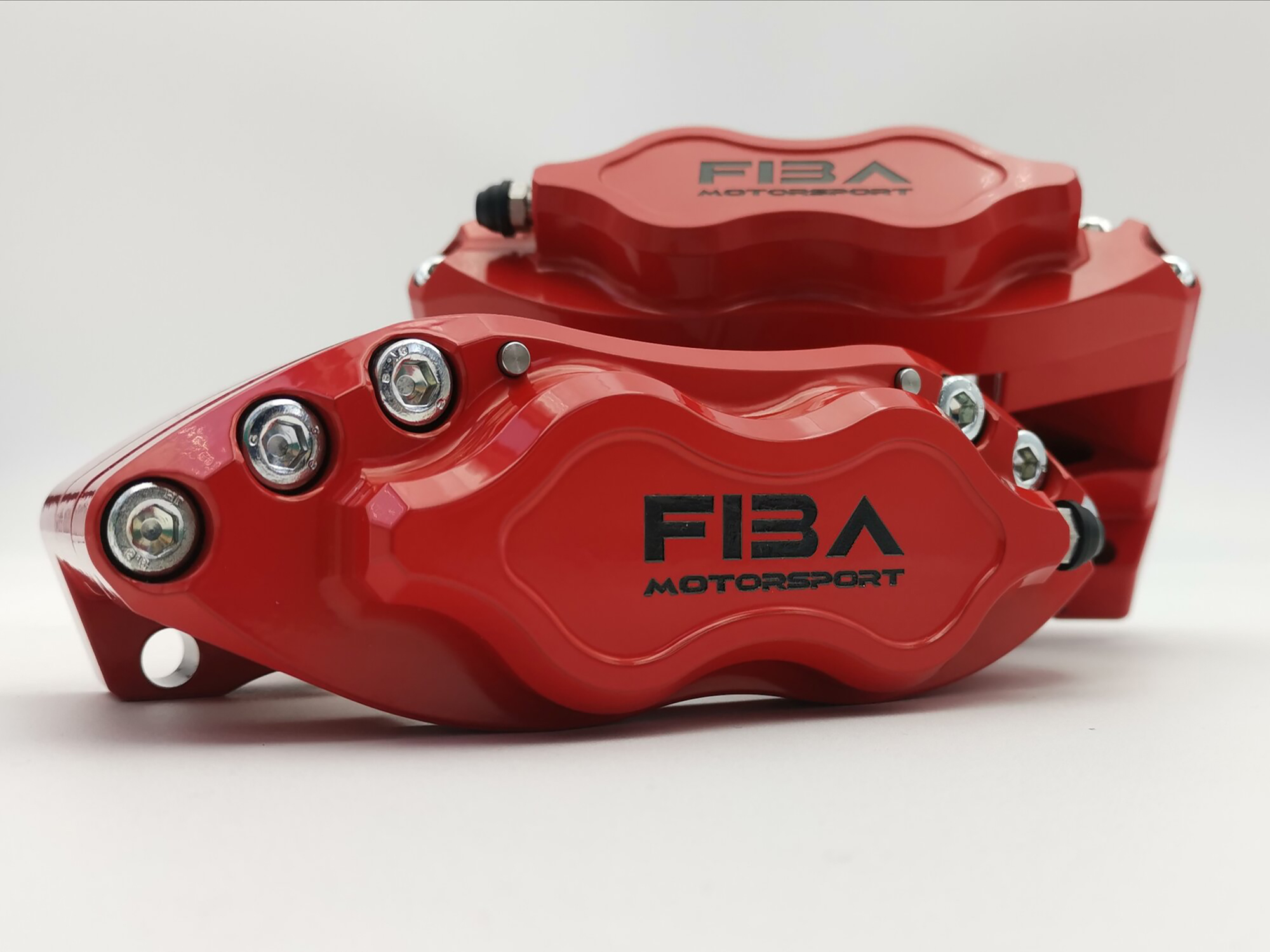

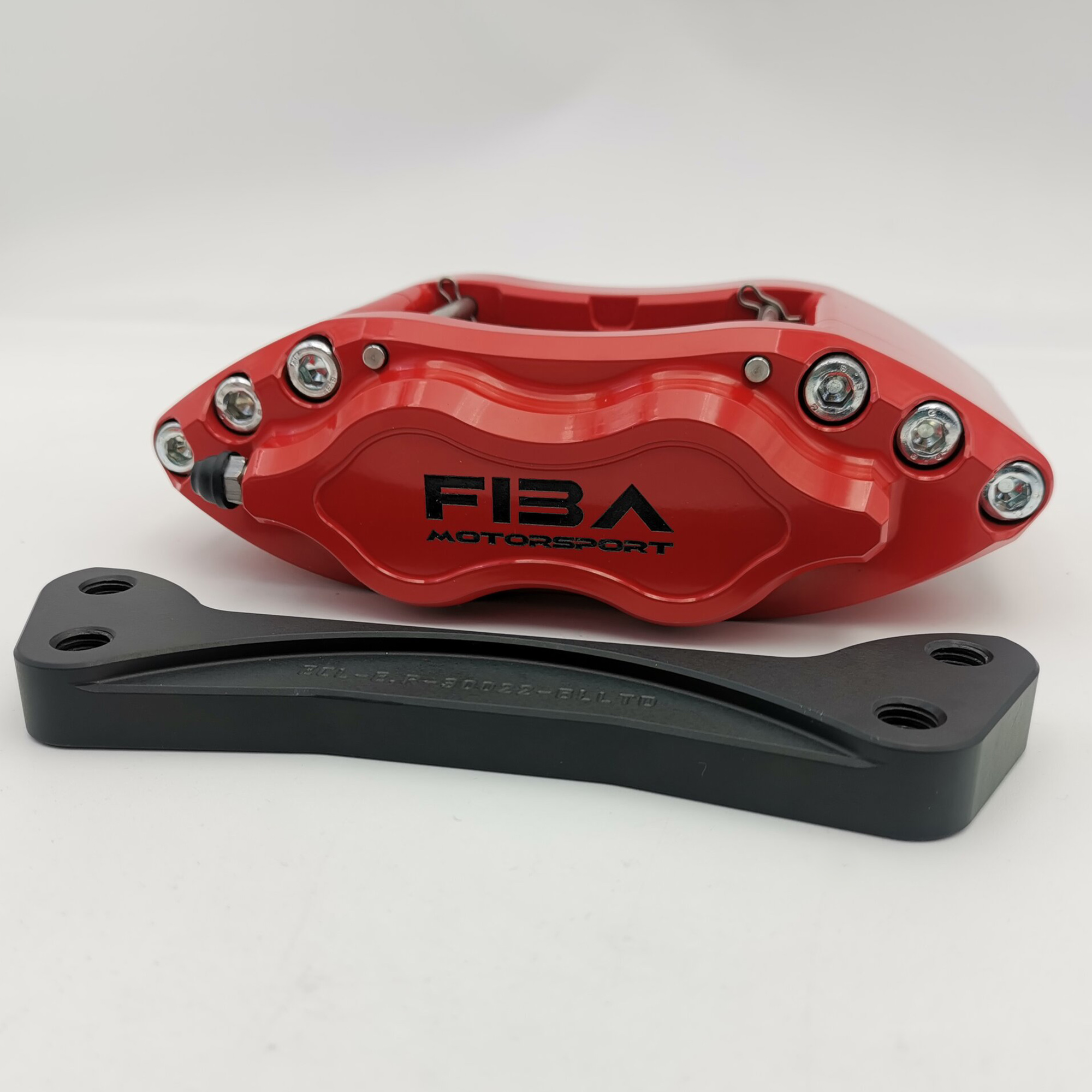

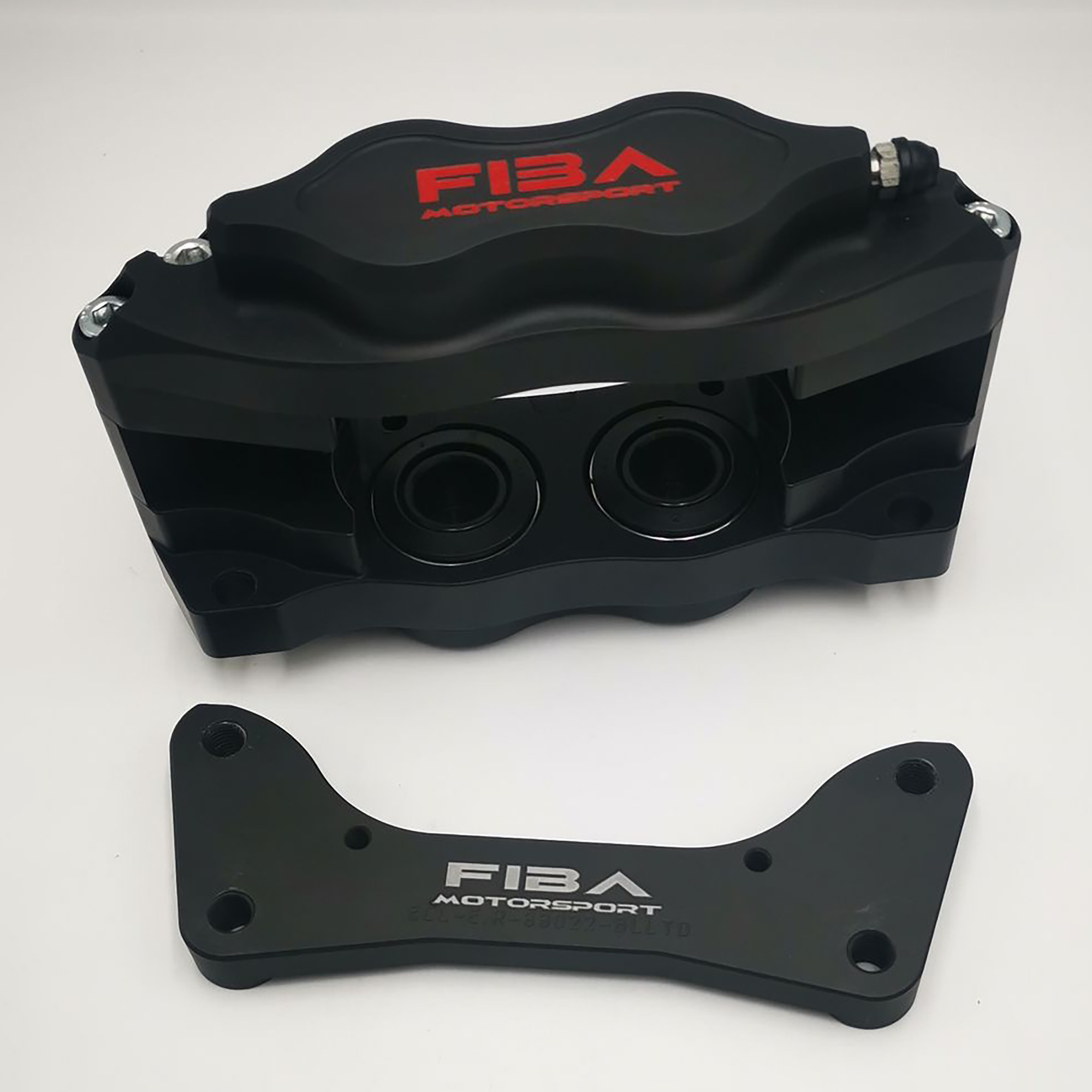

- 4 piston Billet calipers
- Increased caliper stiffness and clamping loads
- Billet mounting brackets

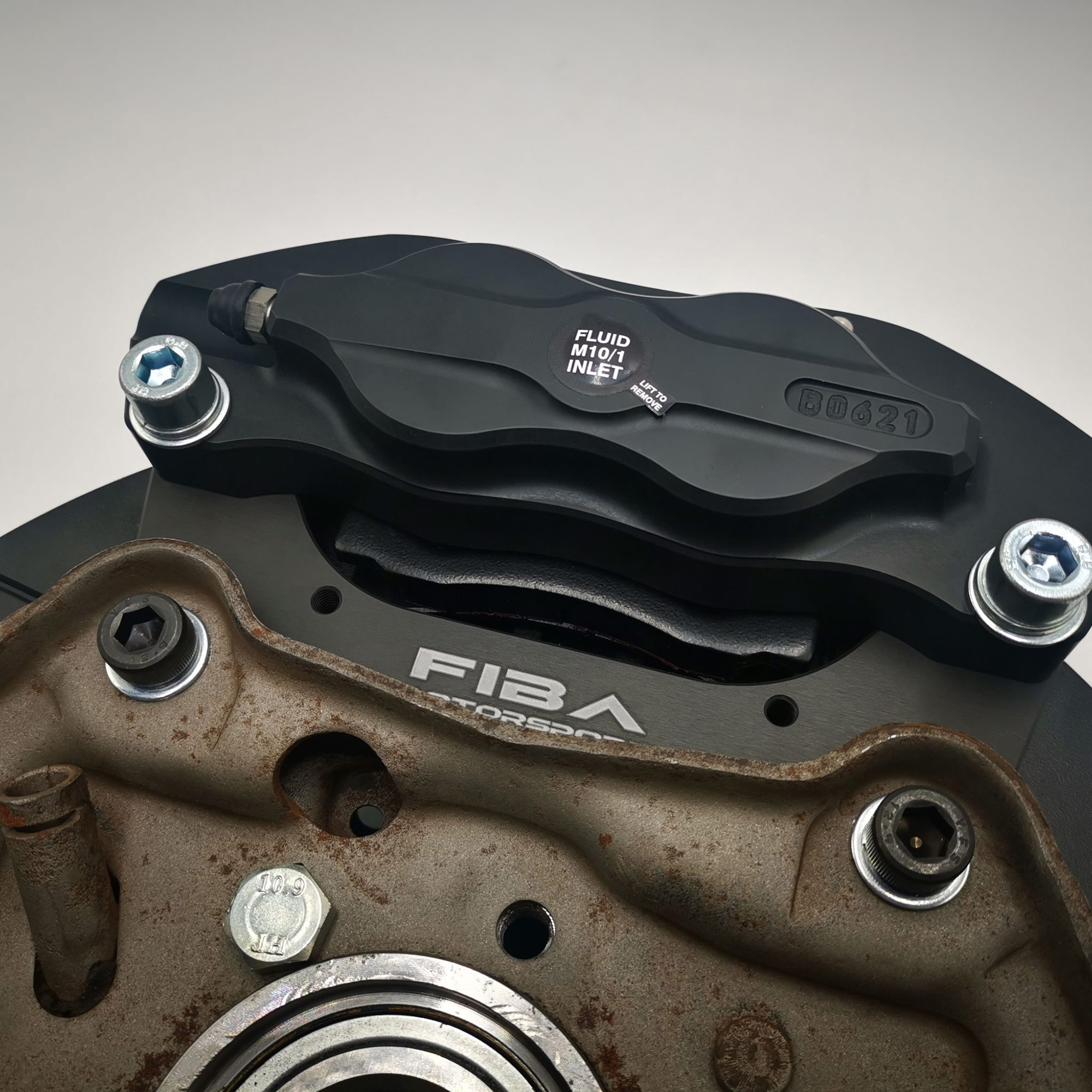

- Direct mounting to the OEM brake plate (AWD/FWD)
- High temp piston dust seals for less maintenance
- 4 x 31mm hard anodized pistons
- All hardware is included for mounting
- Built-in cooling duct holes for the use of ducting
This caliper/bracket/rotor set DOES NOT COME WITH PADS.

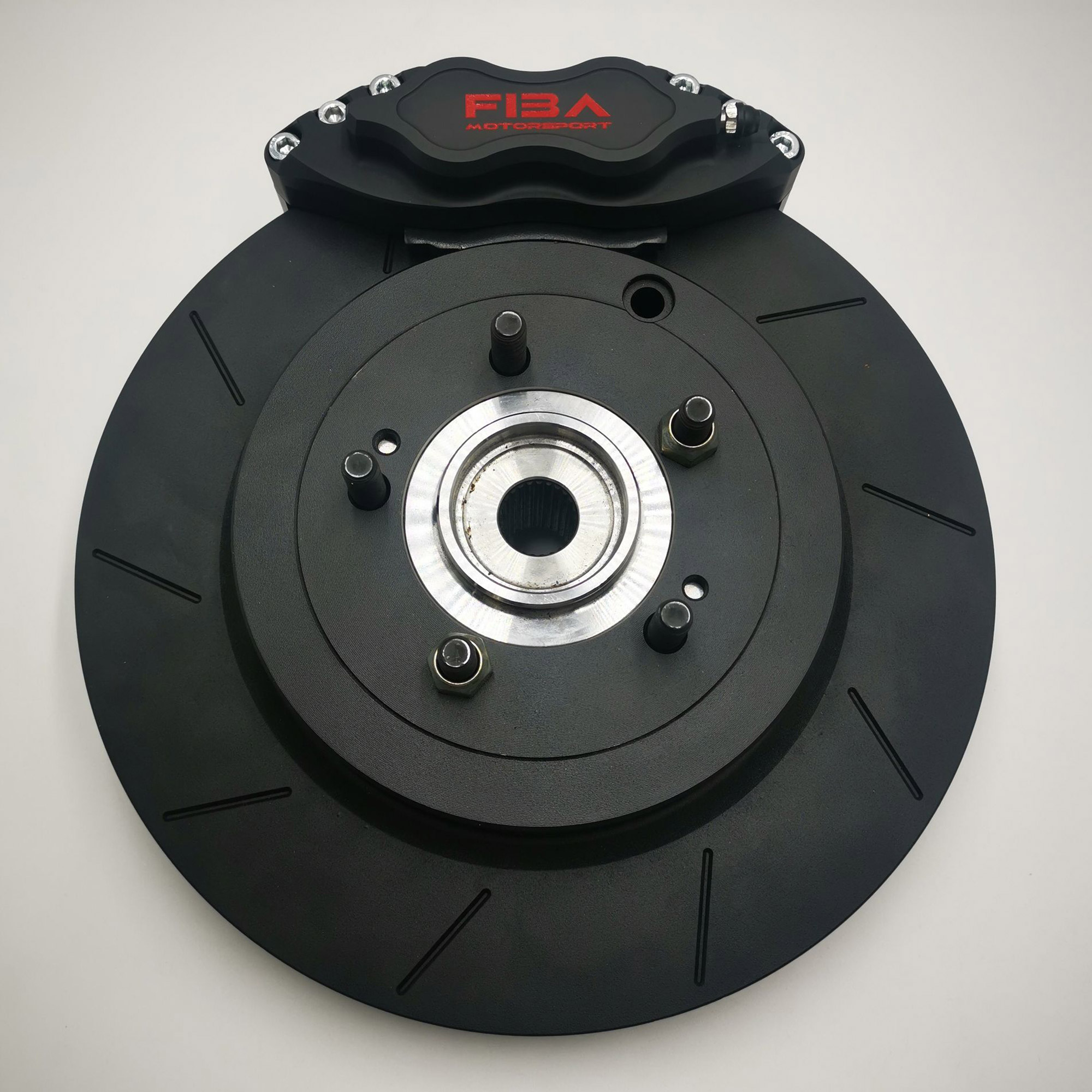

Rotor Selection Guide
- 300mm rotor option – Evo 300mm rotor off the shelf with ZERO modifications needed and will retain the factory Hand brake
- 330mm rotor option – Evo X 330mm rotor off the shelf. This DOES require some modifications. The center bore will need to be machined out to 90.1mm. This also removes the Factory E brake since the shoes are now too small.A hydraulic E brake is required to maintain a functional E brake system
- 320mm, 330mm or 340mm x 28mm high vein count (2-piece rotor) will come with an alloy bell for maximum weight loss and optimal bearing heat protection saving your bearings. E Brake CANNOT be used while moving! STRICTLY for parking only.
Notes
Various surface finishes available: Slotted, J Hook.
300mm & 330mm single-piece rotors will come with a black coating.
