Description

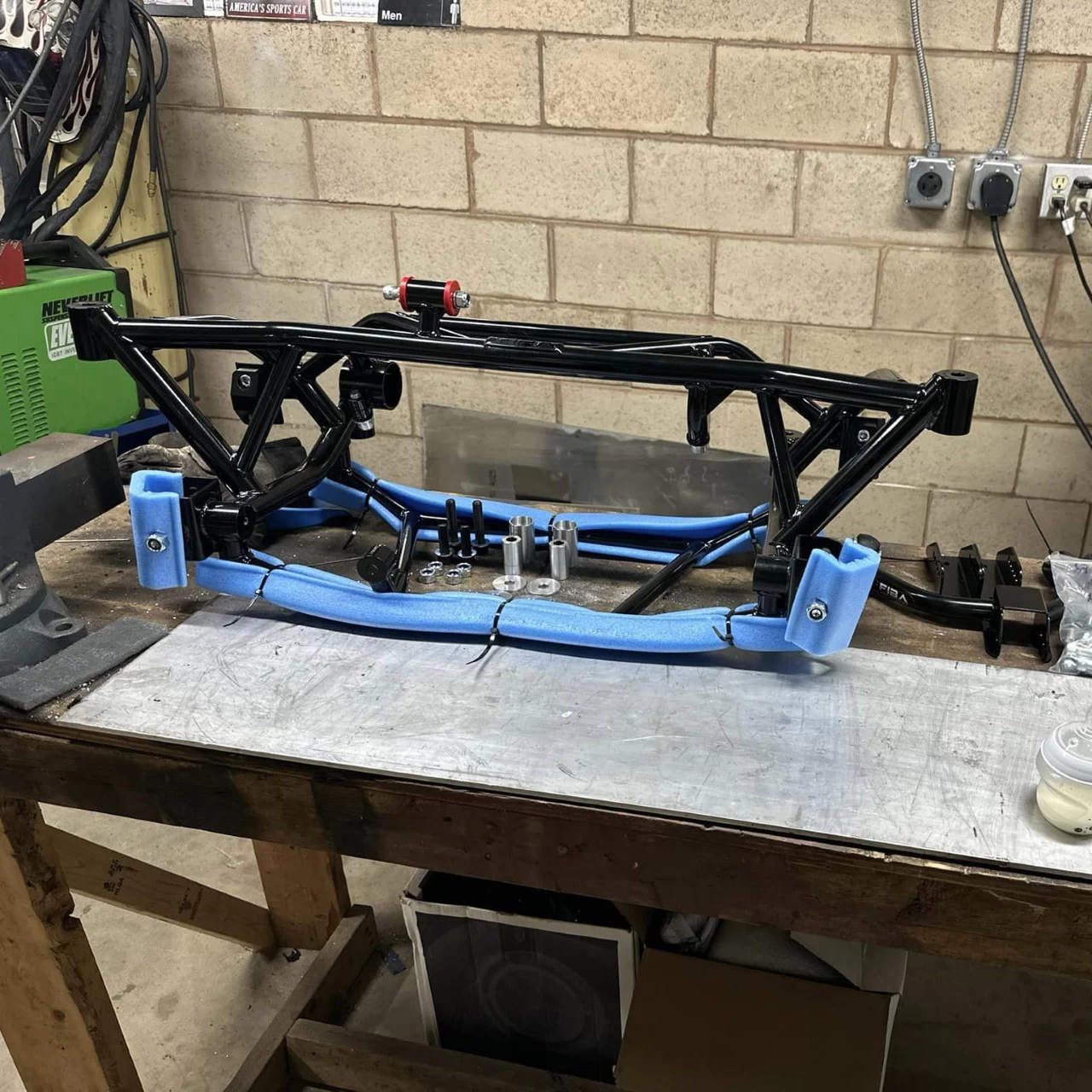

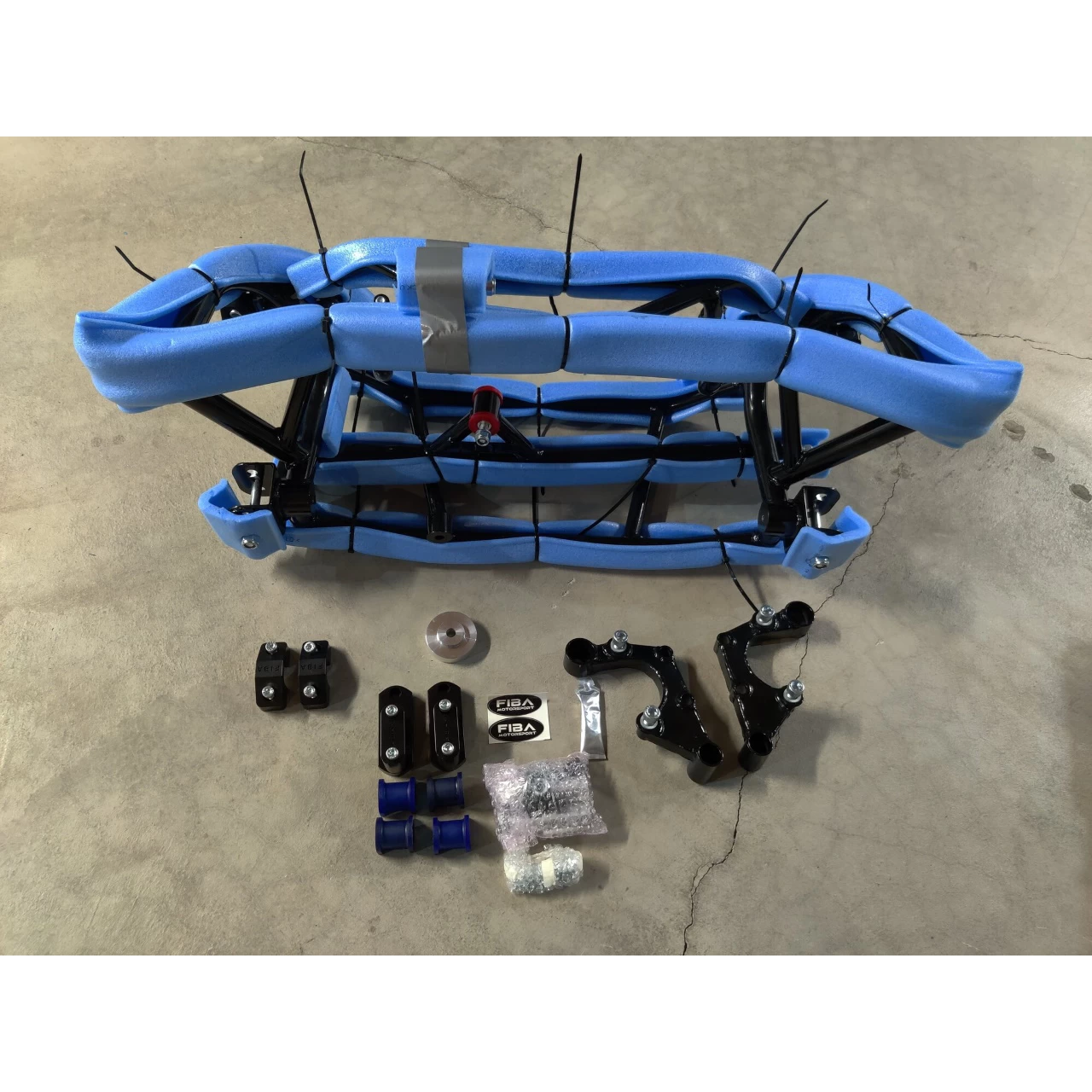

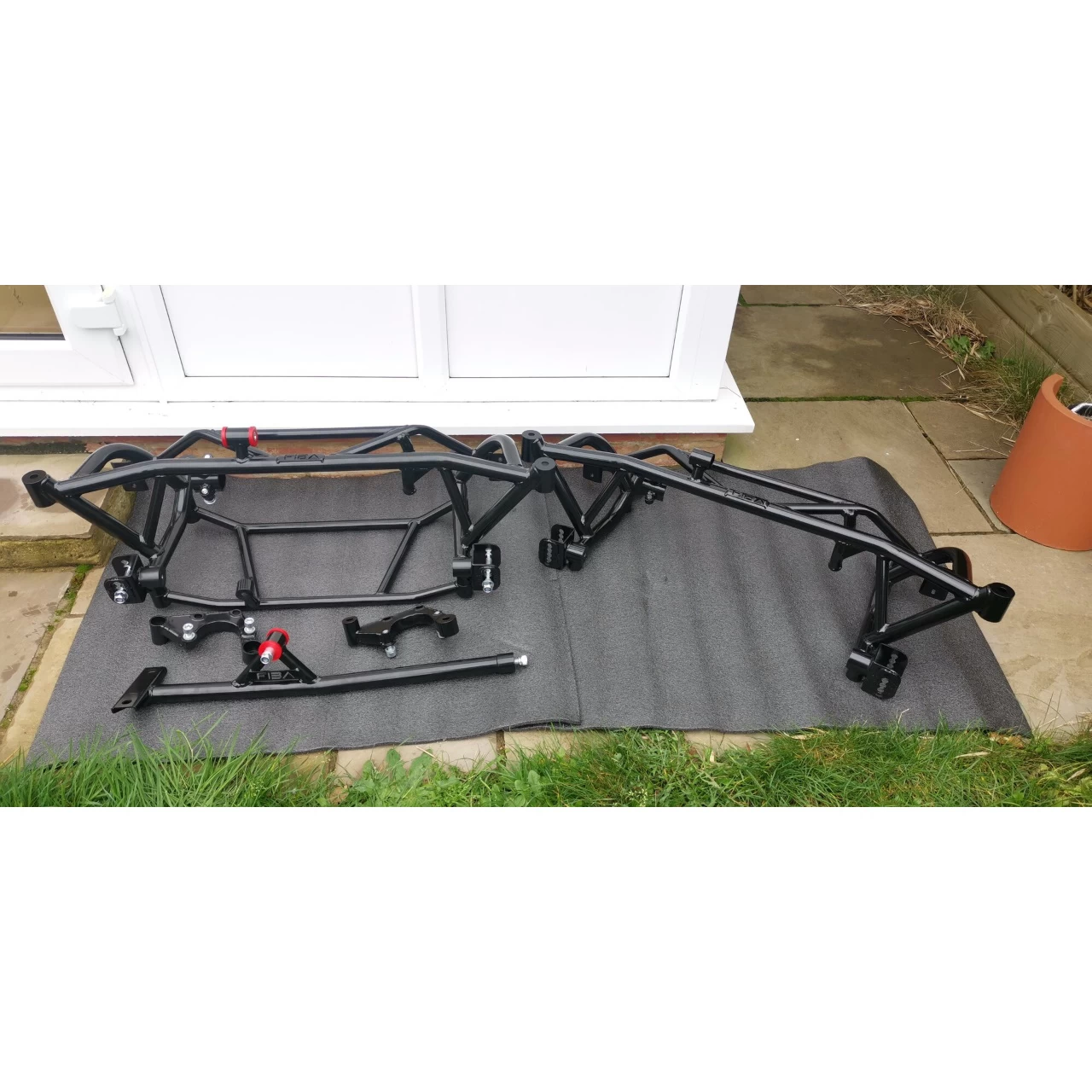

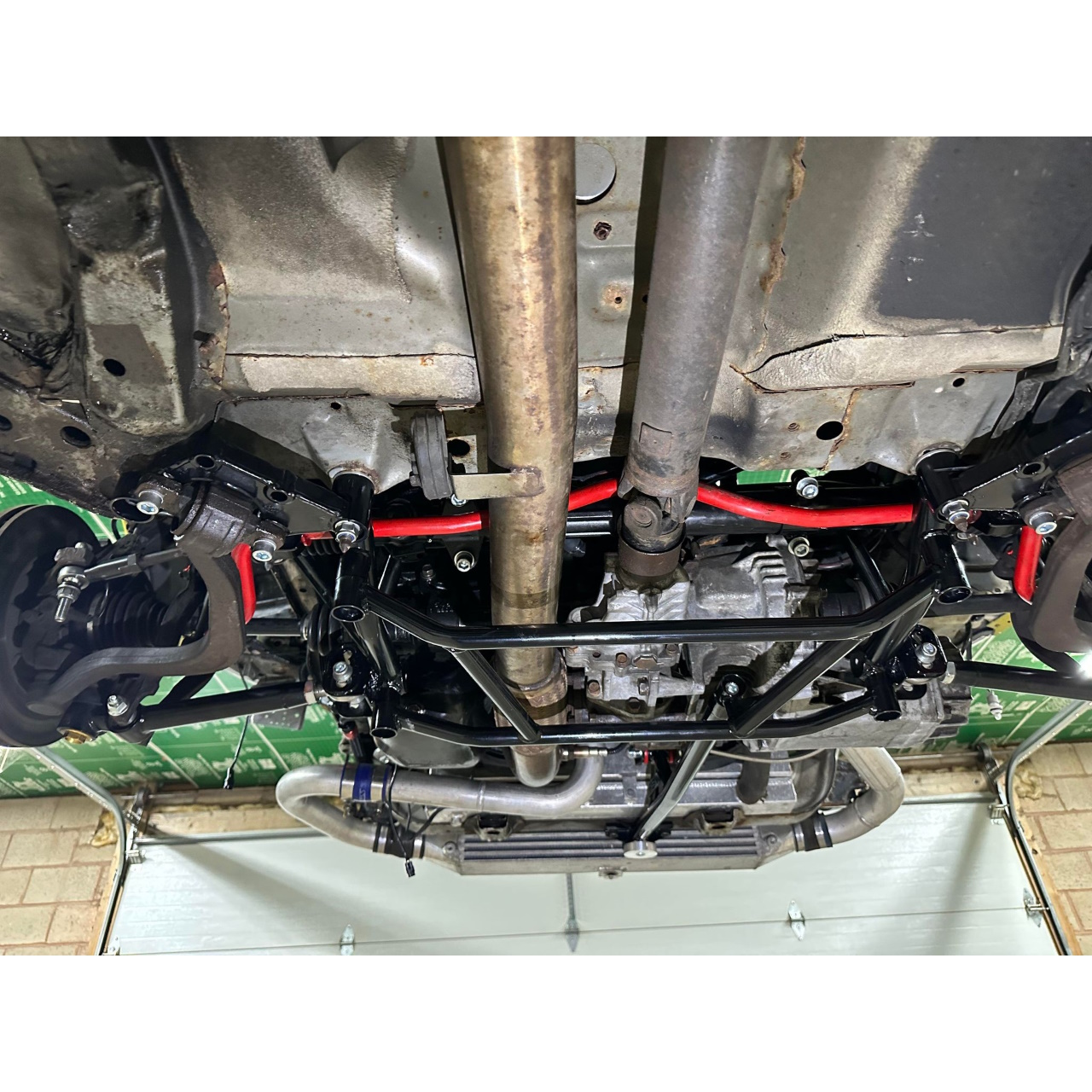

This was designed to be the BEST Front Tubular subframe available for the 2G DSM. NO EXCEPTIONS

Designed with strength in mind This was created like nothing else, Triangulation in every section makes for the ultimate stiff subframe that can take on ANY task from Time Attack, Hill climbs, Circuit racing, and Drag racing.

FEATURES

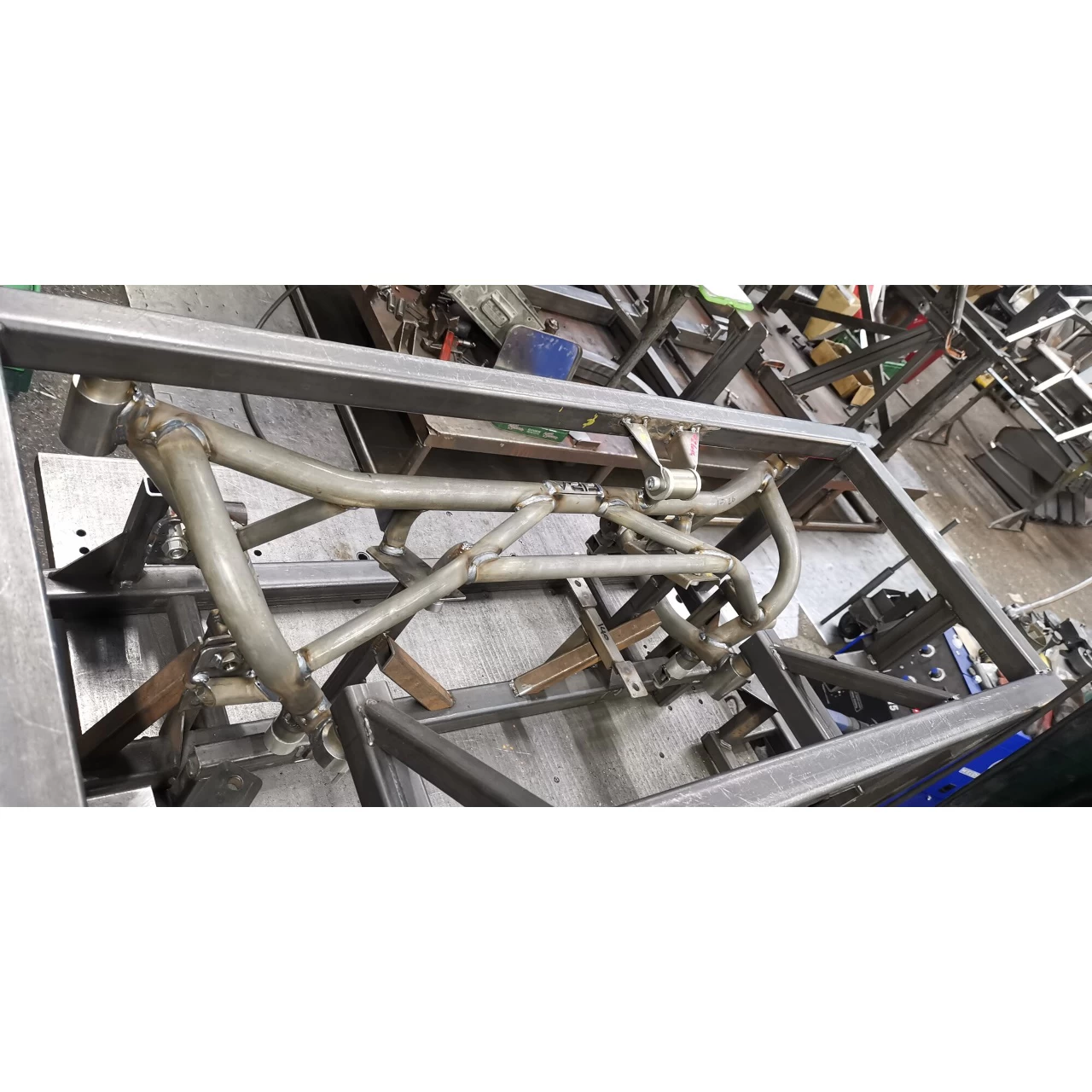

• Full Tubular steel Triangulated construction for the ultimate strength and rigidity
• Multi holes control arm mounting holes for roll center or ride height adjustments to get that perfect setup
• Road or Race spec options (see below for details)
• Large opening for the biggest of exhaust systems
• Solidly mounted steering rack for the best feedback to the Driver

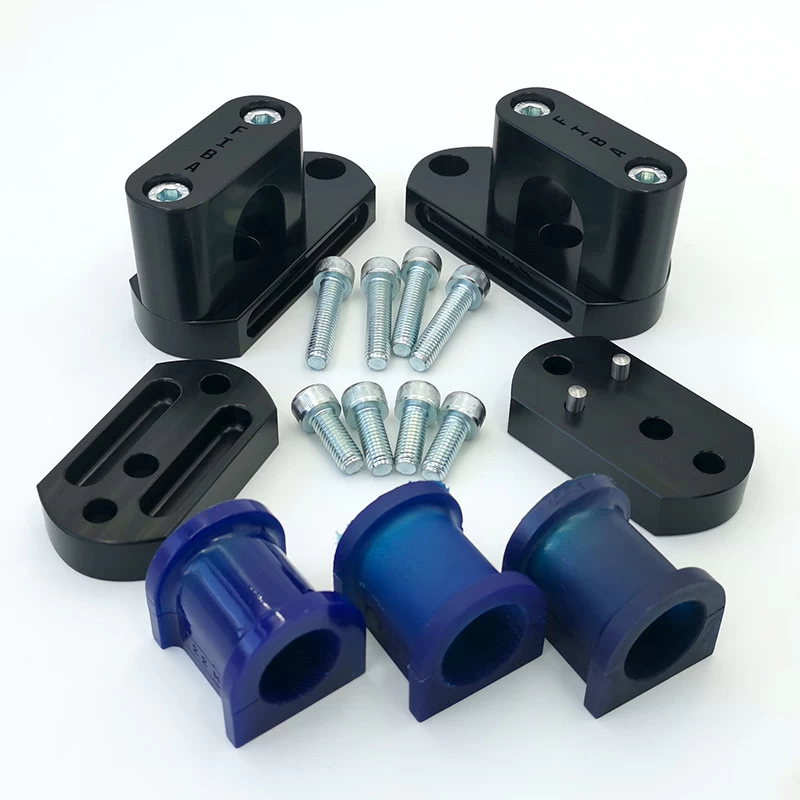

• Billet anti-roll bar brackets on every frame

Options

Road spec Subframe. (Included modular outer, and 2 point under brace to use with OEM or aftermarket cross member) mounts on the back location hole only! So aftermarket crossmembers will need to be reinforced on the 3mm plate.

Race spec Subframe. Includes a custom 4-point brace for added strength and support below the frame for those corners. This will also come with a custom cross member designed for the 4-point brace only.

The 4-point brace can be added at a later date with the cross member if desired as an upgrade, the same with the outer mountings for the custom arms (the outer is yet to be finished as compression arms will be made at the same time).

BOTH road and race spec frames will come with either one of three options for frame mounting pads and these are (NOTE: outer mount will be direct mount to frame still):

• Rubber for better NVH (better for street and more daily use)
• Nylon for improved stiffness and some noise reduction (for those looking for added stiffness and those who do not mind a bit more noise/vibrations)
• Alloy for full stiffness and no flex/movement on the chassis (full-on race spec zero damping of noise!

BOTH versions are able to be used on the roads or race tracks! Names are just to separate them better.

Roll stops.

Aluminum or Polybush

***note that some customs fees might be needed due to the import value of the item. It depends on the country you are vs how much.

I will be able to offer a wide range of colors they have in stock at the given time and some metallic colors which would cost a fraction more due to the increase in the cost of the powder. At the given time of order, I can supply you with a color list they have in the RAL chart or others they have and go from that list.
